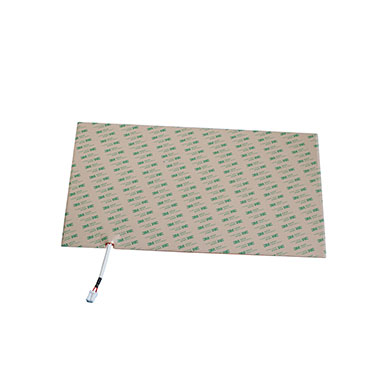

Adhesive Silicone Heating Pad for Electric Vehicle Car

Availability:

Car battery heater provide the heat source for battery pack; solve the low temperature impact on lithium-ion batteries.
The heaters adopt nickel alloy foil that patterned by etching processing. It achieves quick radiation, high efficiency and long working life

Power Source: Electric

Rated voltage: can be customized

Power density: decided by the temperature requirement, 0.1w/square cm power density can make the surface temperature of the heater to 50DC on a normal condition

Dielectric strength: 1500v/min

Warranty: 1 Year

Insulation resistance: 1000V,≥100MΩ

Certification: ISO9001, CE, Rohs, UL

Application: as customer’s need


Name

Model

Specifications

Leading line

Teflon wire UL1332

300V,26AWG-10AWG

Teflon wire UL1330

600V,26AWG-10AWG

PI line

300V,30AWG-20AWG

Silicone rubber line

300V,0.5mm2-2.5mm2

Glass fiber line

300V,0.5mm2-4mm2

3M glue

468/467

working temperature ≤ 149℃

966/9079

working temperature ≤ 179℃

9888T

working temperature ≤ 119℃

Controller

OT1

0-200°C JPt 100Ω sensor

OT3

0-300°C  PID controller

OT4. OT5

100ºC

EGO

0-40ºC 30-110ºC 60-200ºC

Thermo

50ºC 70ºC 100ºC 120ºC 150ºC


1533540003056_1511533540003053_455-11533540003053_455


1533543491363_591533543499439_3431533543507459_462


1533691442891_7961533691442900_2671533691442936_312
