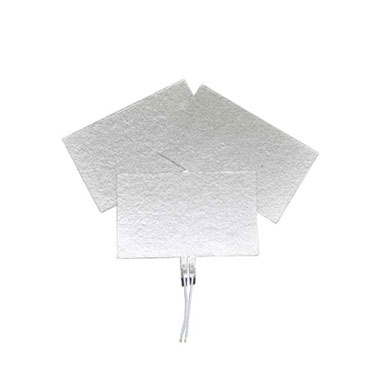

Mica Heating Element

Dielectric strength at 20C as per ASTM KV/mm

>25

Thwemal conductivity at 100C W/(m.k)

0.30

Moisture absorption as per ASTM D-570-63. (24h immersion at 23C)

<1%

Constant of dielectricity at 25C, 50Hz

4-5.5

Max.element width

900mm

Power density

10W/cm²(depending on application)

Resistance tolerance

As standard, ±10% of nominal. Tolerance down to ±2% available

Rated voltage

Up to 1000V AC/DC single or 3 phase

Other

Thickness min. 0.1mm

Leading line

Teflon wire UL1332

300V，26AWG-10AWG

Teflon wire UL1330

600V，26AWG-10AWG

PI line

300V，30AWG-20AWG

Silicone rubber line

300V，0.5mm2-2.5mm2

Glass fiber line

300V，0.5mm2-4mm2

3M glue

468/467

working temperature ≤ 149℃

966/9079

working temperature ≤ 179℃

9888T

working temperature ≤ 119℃

Controller

OT1

0-200°C JPt 100Ω sensor

OT3

0-300°C  PID controller

OT4. OT5

100ºC

EGO

0-40ºC 30-110ºC 60-200ºC

Thermo

50ºC 70ºC 100ºC 120ºC 150ºC
