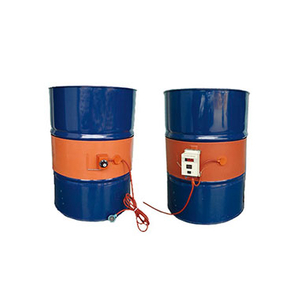

Silicone Rubber Drum Heater

Availability:

Drum heaters are designed to easily take liquid or solid materials out of drum. Heating adhesives, grease, asphalt, paint, wax, oil or various resinous metarials in drum will bring to constant viscosity and consequently minimum use of pumping power.

Features

- High heat efficiency since the heater is fully baked on the stainless sheet, and the heat plate can be directy fitted to the drum, pail can or the ltto can.

- Laboratory research

- Semiconductor processing equipment

- Optical equipment

- LCD displays

- Computer equipment

- Photographic equipment


A. For 55Gal, 115V, 1500W Drum Heater
Drum Capacity 55 Gal, Drum Dia 22 1/2 In,1500 Watts, 13 Amps AC, Voltage 115, For Use With Metal Drum, Size 4 In W, Stem Rotation 310 Deg

B. For 55Gal, 230V, 1500W Drum Heater
Drum Capacity 55 Gal, Drum Dia 22 1/2 In,1500 Watts, 6.5 Amps AC, Voltage 230, For Use With Metal Drum, Size 4 In W, Stem Rotation 310 Deg

C. For 55Gal, 115V, 1000W Drum Heater
Drum Capacity 55 Gallons, Voltage Rating 115 Volts, Power Rating 1000 Watts, Current Rating 8.7 Amps, Drum Diameter 22 1/2 Inches

D. For 55Gal, 230V, 1000W Drum Heater
Drum Capacity 55 Gallons, Voltage Rating 230 Volts, Power Rating 1000 Watts, Current Rating 4.35Amps, Drum Diameter 22 1/2 Inches

E. For 30Gal, 230V, 750W Drum Heater
Drum Capacity 30 Gallons, Voltage Rating 230 Volts, Power Rating 750 Watts, Current Rating 6.6 Amps, Drum Diameter 18 1/4 Inches

F. For 30Gal, 115V,750W Drum Heater
Drum Capacity 30 Gallons, Voltage Rating 115 Volts, Power Rating 750 Watts, Current Rating 6.6 Amps, Drum Diameter 18 1/4 Inches


Name

Model

Specifications

Leading line

Teflon wire UL1332

300V,26AWG-10AWG

Teflon wire UL1330

600V,26AWG-10AWG

PI line

300V,30AWG-20AWG

Silicone rubber line

300V,0.5mm2-2.5mm2

Glass fiber line

300V,0.5mm2-4mm2

3M glue

468/467

working temperature ≤ 149℃

966/9079

working temperature ≤ 179℃

9888T

working temperature ≤ 119℃

Controller

OT1

0-200°C JPt 100Ω sensor

OT3

0-300°C  PID controller

OT4. OT5

100ºC

EGO

0-40ºC 30-110ºC 60-200ºC

Thermo

50ºC 70ºC 100ºC 120ºC 150ºC
