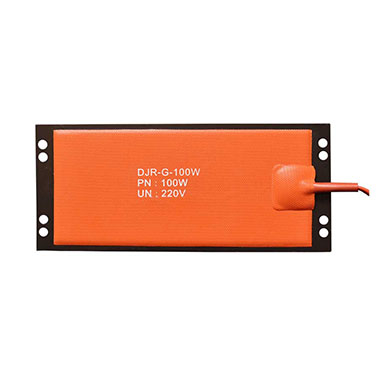

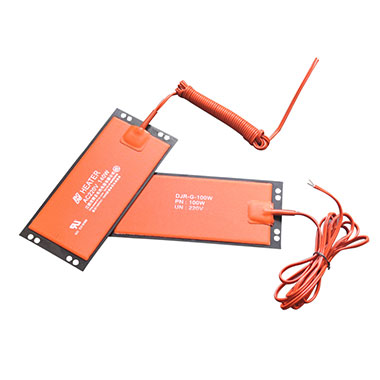

Switch Cabinet Heater

Cabinet heater can be used to the heating and heat preservation of all kinds od cabinets and boxes, such as cubicle switchboard,communication cabinet, linghting box, antiflocculation box , computer, etctucture.


For this type heater, we can produce mounting holes for easy install and there is aluminum plate on the back of the heater. We have normal size(RDB type) and also we can produce as custom made.


Power Source: Electric

Voltage: 12-480V

Maximum size: 500mm*1000mm

Recommended working temperature:≤200℃

Color: Brown

Warranty: 1 Year

Material: silicone rubber with etching film

Insulation material:  silicone rubber

Insulation resistance: ≥50MΩ

Certification: ISO9001, CE, Rohs, UL

Application: as customer’s need


Normal size:

Model

RDB-50

RDB-70

RDB-100

RDB-150

RDB-250

Size(mm)

90x150

100x210

120x185

150x200

150x300

Power

50W

70W

100W

150W

250W



Name

Model

Specifications

Leading line

Teflon wire UL1332

300V,26AWG-10AWG

Teflon wire UL1330

600V,26AWG-10AWG

PI line

300V,30AWG-20AWG

Silicone rubber line

300V,0.5mm2-2.5mm2

Glass fiber line

300V,0.5mm2-4mm2

3M glue

468/467

working temperature ≤ 149℃

966/9079

working temperature ≤ 179℃

9888T

working temperature ≤ 119℃

Controller

OT1

0-200°C JPt 100Ω sensor

OT3

0-300°C  PID controller

OT4. OT5

100ºC

EGO

0-40ºC 30-110ºC 60-200ºC

Thermo

50ºC 70ºC 100ºC 120ºC 150ºC
