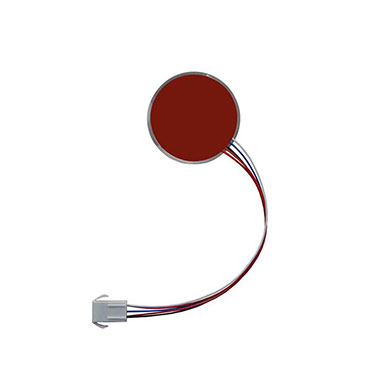

Flexible Heater for Cpap

Heater for Medical Device:

Excellent choice for heaters that require multi-zoned wattages or heaters that have many holes or cutouts:

- Offers excellent circuit repeatability.

- Elimination of edge loss due to compensation using distributed wattage.

- Etched foil provides options for variable watt density and complex heat patterns.

- Etching circuits is an efficient means for manufacturing in high quantities.

- Foil thickness ranges from .0005” to .004” depending on your required resistance.

- Different foil material types can be used depending on the heater resistance needed.

- Etched designs are excellent for applications requiring watt densities greater than 5 watts/in2.


Typical Application:

- CPAP device

- Ultrasonic cleaner

- Medical analyzer

- Thermal Imaging system

- CT apparatus

- Injection syringe

- Other place need to heating


Power Source: Electric

Voltage: 12-480V

Power : ≤ 3W/cm2

Maximum size: 500mm*1000mm

Thickness:1-1.5mm

Recommended working temperature:≤200℃

Color: Brown

Warranty: 1 Year

Insulation resistance: 1000V,≥100MΩ

Certification: ISO9001, CE, Rohs, UL

Application: as customer’s need


Name

Model

Specifications

Leading line

Teflon wire UL1332

300V,26AWG-10AWG

Teflon wire UL1330

600V,26AWG-10AWG

PI line

300V,30AWG-20AWG

Silicone rubber line

300V,0.5mm2-2.5mm2

Glass fiber line

300V,0.5mm2-4mm2

3M glue

468/467

working temperature ≤ 149℃

966/9079

working temperature ≤ 179℃

9888T

working temperature ≤ 119℃

Controller

OT1

0-200°C JPt 100Ω sensor

OT3

0-300°C  PID controller

OT4. OT5

100ºC

EGO

0-40ºC 30-110ºC 60-200ºC

Thermo

50ºC 70ºC 100ºC 120ºC 150ºC
