Kapton is a polyimide film used in conjunction with etched foil circuits to produce very thin flexible heaters. It has excellent dielectric qualities to provide 5000 volts dielectric per 0.001inch (0.025mm) thickness.

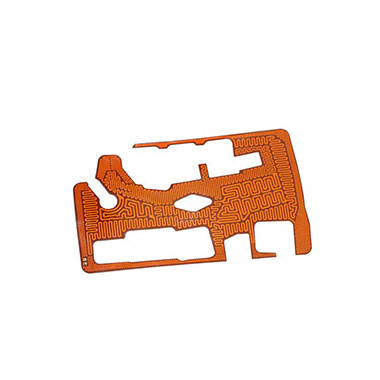

Kapton Heater can be made in any shapes, sizes and wattages. The working volts is from 1V to 240V. According to the different heating requirement, we can design different heating loop. So it has flexible designation.
Because of the light heavy and heating evenly, it is using in many ways, such as Satellites, aerospace equipment, mobile devices.
Features and Benefits:
Excellent physical and electrical properties: results in thermal stability over a wide temperature range.
Transparent polyimide material: allows inspection of internal details.
Resistance of radiation and fungus: can be used in a wide range of applications.
Power Source: Electric
Power : ≤ 3W/cm2
Maximum size: 500mm*1000mm
Recommended working temperature：≤ 180℃
Warranty: 1 Year
Material: PI/kapton with etching film
Insulation material: polyimide film
Insulation resistance: 1000V，≥100MΩ
Certification: ISO9001, CE, Rohs, UL
Application: as customer’s need
Medical applications that require a clean, sterile environment
Semiconductor processing equipment
